Tungsten Carbide Ballistic Button

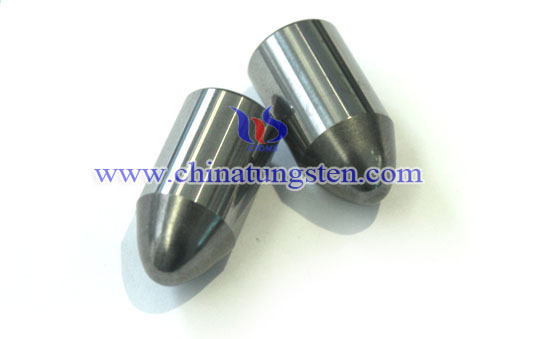

tungsten carbide ballistic button picture

Application

1.Tungsten carbide button with special working properties, which is widely used in oil drilling and shoveling, snow plow machines and other equipment.

2.Used in shearer drills, mining machinery tools and road sweeping snow removal and road repair tools.

3. Used in quarrying, mining, tunneling, and civil construction.

Introduction

1.Tungsten carbide ballistic button is made of high purity tungsten powder, which with high strength and hardness and long-life span.

2. Pressed by isostatic pressing precision press, uniform density, continuous teeth, sintered by overpressure sintering furnace, product wear resistance increased by 24%.

3. After the centerless grinding machine, the size is accurate, the welding is firmer, and the DTH drill bit does not drop the teeth.

4. Used to make down-the-hole drill bits.

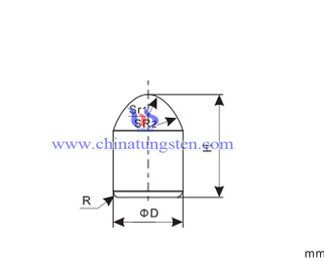

Specifications

Type Dimensions Diameter Tolerance
D H d
ZWD0710 7.1 10 ±0.005
ZWD0812 8.1 12
ZWD0914 9.1 14
ZWD1015 10.1 15
ZWD1116 11.1 16
ZWD1217 12.1 17
ZWD1318 13.1 18
ZWD1420 14.1 20
ZWD1521 15.1 21
ZWD1624 16.1 24
ZWD1728 17.1 28
ZWD1826 18.1 26
ZWD1928 19.1 28
ZWD2028 20.1 28
ZWD2132 21.1 32
ZWD2235 22.1 35
ZWD2534 25.1 34
